USGB.DANI

Technical description

    • The load capacity of the beam is from 60.000 to 150.000 kg. (depending on wheels)

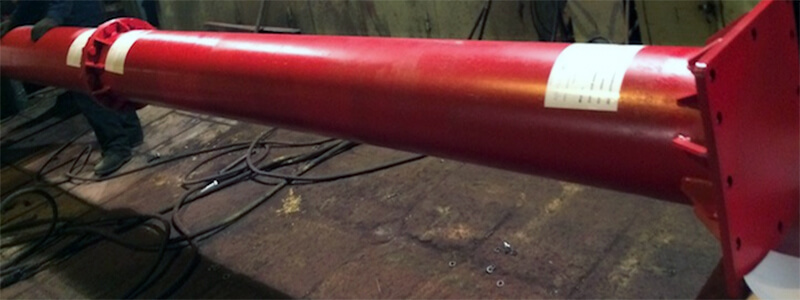

    • The size of one section of the lifting beam is 3000 mm.
    • Traverse size 4250 x 1595 x 400 mm.
    • The curb weight of the evacuation beam with traverses is 3.250 kg.
    • Temperature range from -60 to +60 С
    • Recommended completeness: three sections, traverse, trailer for storage and transportation.

Specification of the version of the universal sectional lifting beam USGB.DANI

For the convenience of agreeing on the terms of reference, we suggest that you familiarize yourself with the basic specification of USGB.DANI. If you want to make an individual order and make changes, for this you need to:

    • download specification;
    • specify the required dimensions;
    • send a request to the Client Department by e-mail  ceo@russtt.com.

Our experts will contact you within 24 hours.

Completeness of the universal sectional lifting beam USGB.DANI

For optimal load distribution and efficient use of the lifting beam, the delivery includes a lifting beam, lifting beams and a trailer for storage and transport.

Delivery set of the Universal sectional lifting beam USGB.DANI

    • Specification
    • Three sections of lifting beam
    • Hardened docking bolts
    • Two under-fuselage rigging bars
    • Trailer for storage and transportation
    • Operation Manual
    • Passport of the USGB
    • Certificate

You can always get live advice from our experts. You can reach us on working days from 8.00 till 20.00 (UTC+3) by phone +7 812 200 42 24 You can also send an application to ceo@russtt.com.
