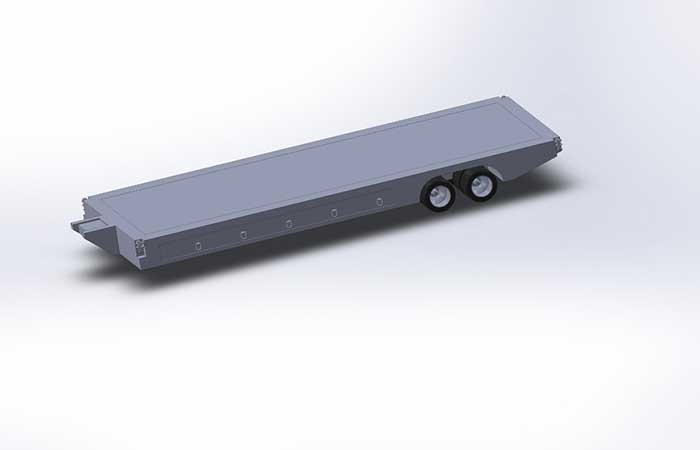

Roll-trailer RT.20E

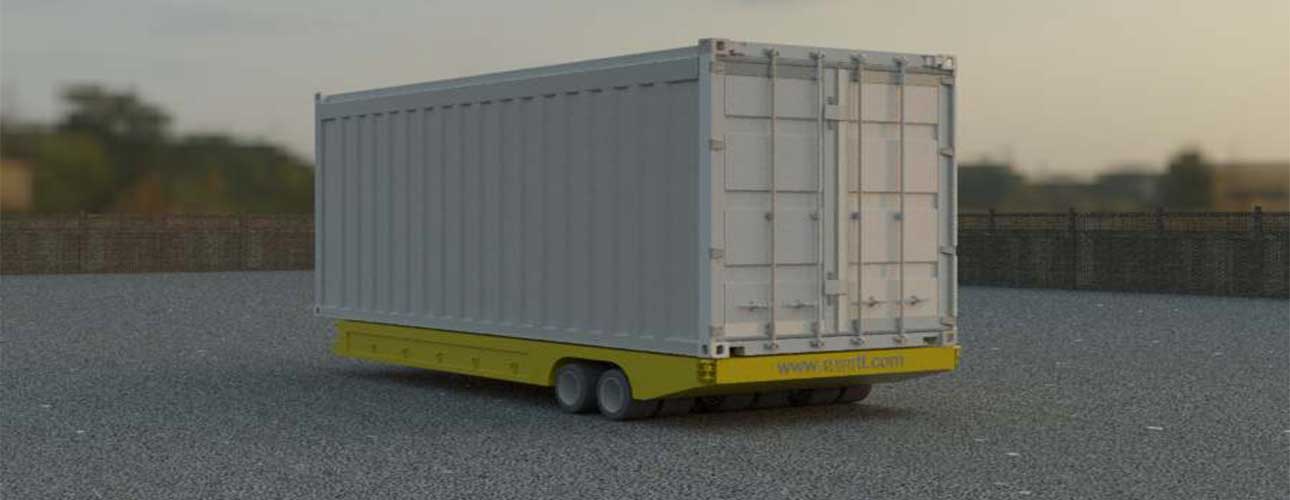

Roll-trailer РТ.20Е is designed for transportation of 20-foot containers and groupage cargo. Suitable for containers type:

    • Standard 20 'container: 20 Dry Freight Container, 20 foot, 20 DV20 DC
    • High 20 'container: 20 Dry High Cube Container, 20 High Cube, 20 HC

Technical description

    • Loading capacity of one roll-trailer 28.000-50.000 kg
    • Single / dual-pitch balanced suspension
    • The busbar is bandage, dual-slope or single-slope

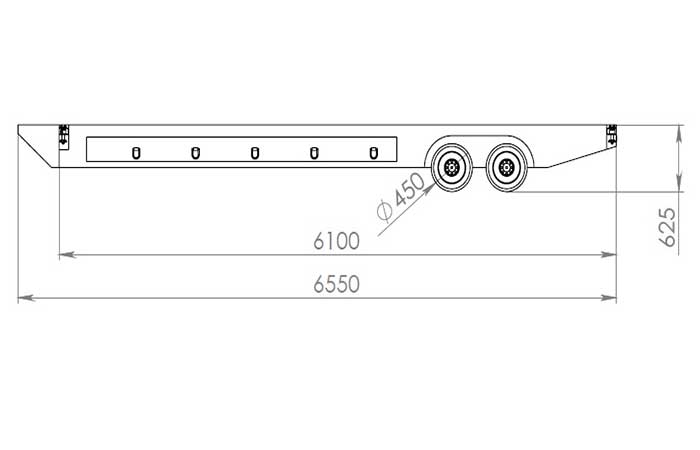

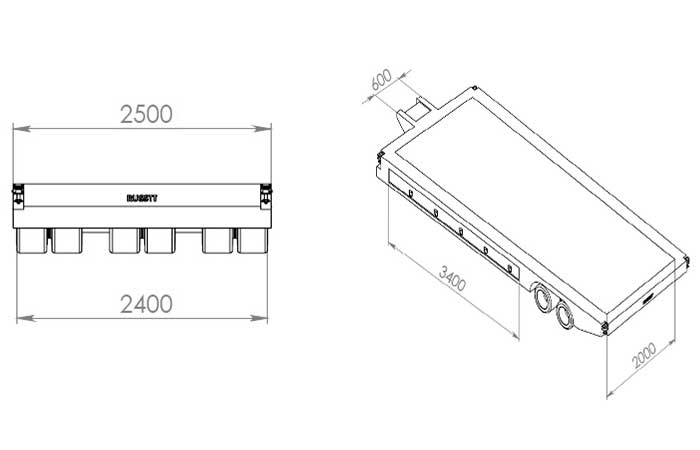

    • Dimensions 6550x2500x625 mm
    • Wheels Ø 450 mm
    • Connector for guzmatic - 600mm
    • The equipped weight of the conveyor is 6.500-8000 kg
    • Temperature range from -60 to +60 С
    • Recommended completeness (1 pc.)

Basic specification РТ.20Е

For the convenience of agreeing on the terms of reference, we suggest that you familiarize yourself with the basic specification of the roll-trailer. If you want to make an individual order and make changes, for this you need to:

    • download specification;
    • specify the required dimensions;
    • send a request to the Client Department by e-mail  ceo@russtt.com.

Our specialists will contact you within 24 hours.

Recommended set of roll-trailer

For optimal load distribution and efficient use of the roll trailer, it is recommended to use one unit.

To choose the optimal solution, you need to contact a company specialist by phone +7 812 200 42 24 or e-mail: ceo@russtt.com

КDelivery set Roll-trailer РТ.20Е

    • Roll Trailer
    • Operating Instructions
    • Passport
    • Certificate of Conformity
    • Warranty period - 5 years
