Specification ET.PELM - 80

Technical description

    • Carrying capacity of one wrecker ranging from 60,000 to 90,000 kg.
    • Suspension of balancer, closed lubrication type, pivoting
    • Single tilt tyre, pneumatic
    • Dimensions 3834x5500x2326 mm
    • Transporter curb weight 8,000 - 12,000 kg
    • Temperature range -60 to +60 C

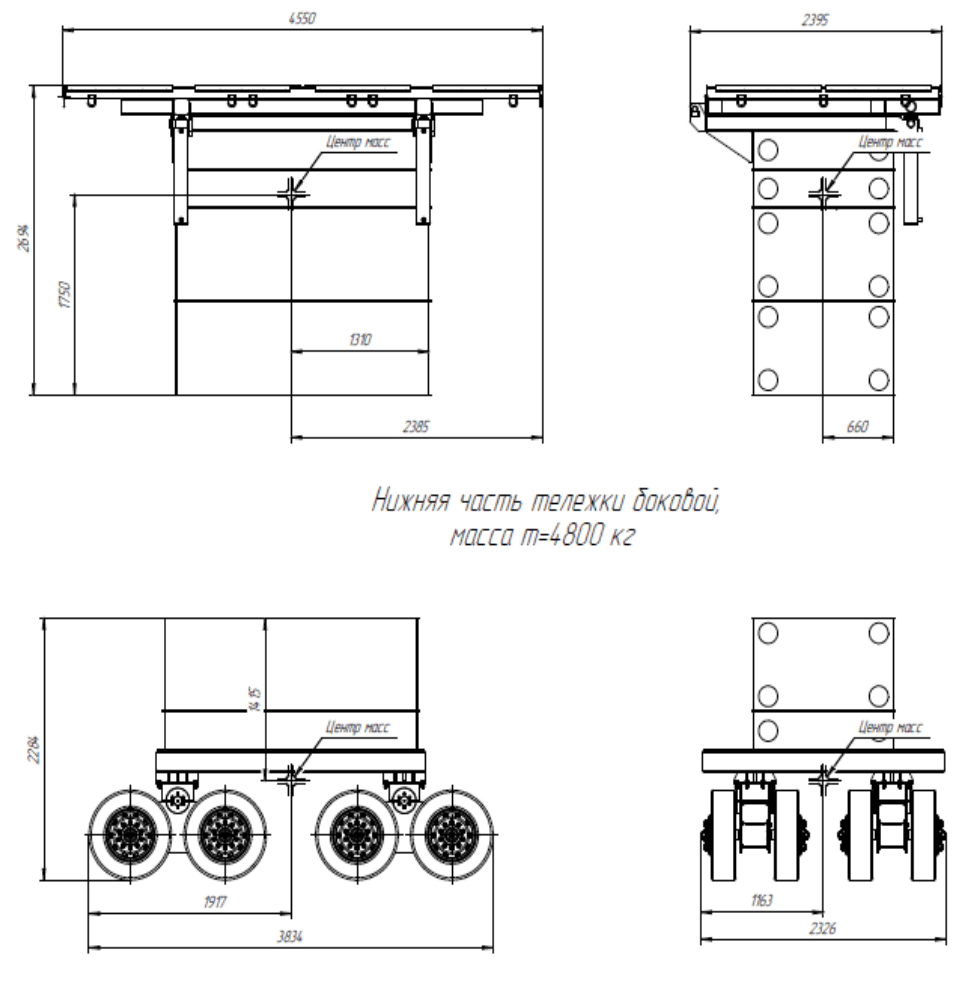

Specification of the basic version of the wrecker with a glider bed.

For convenience of agreement of technical specification, we suggest to get acquainted with the basic specification of the wrecker. To make a custom order and make changes, you need to:

    • download datasheet,
    • specify the required dimensions,
    • send an application to the Customer Service Department by e-mail to  ceo@russtt.com.

Our specialists will contact you within 24 hours.

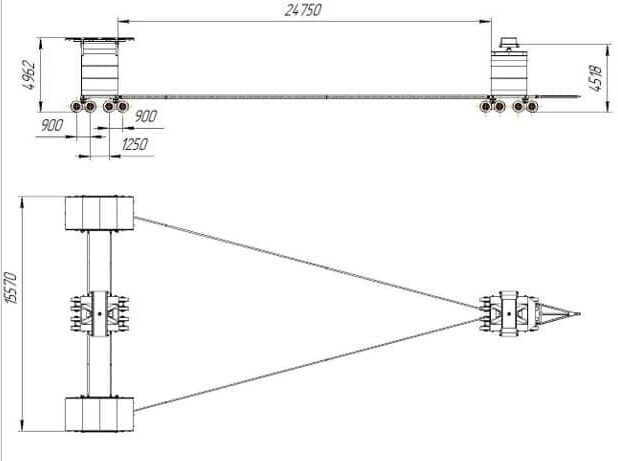

Recommended set of the wrecker

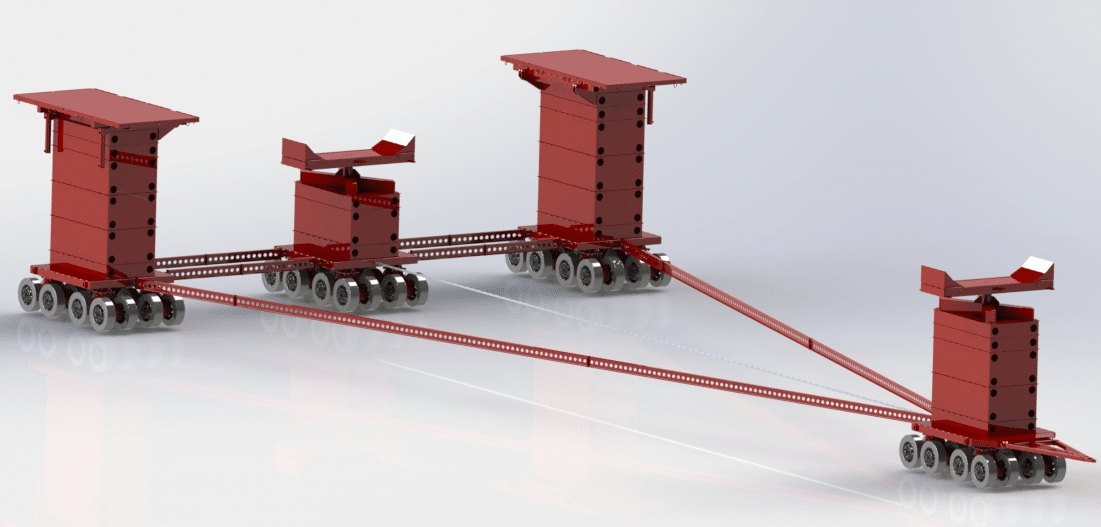

For the best possible load distribution and efficient use of evacuation transporters for emergency aircraft evacuation, four units are recommended. Two transporters with trays under the fuselage, two transporters with trays under the glider part.

Delivery set of Evacuation transporter ET.PELM - 80

One evacuation transporter

    • Evacuation transporter
    • Towing driver
    • Fuselage or glider unit tray
    • Sixteen wheels 235x75R17.5
    • Hydraulic power unit for the operation of the potholder
    • Instruction manual
    • Evacuation transporter passport
    • Certificate

Three evacuation transporters

    • Four Evacuation Transporters
    • Towing driver
    • Six docking beams
    • Two Fuselage Lodges
    • Two trays for the glider part
    • Sixty-four 235x75R17.5 wheels
    • Hydraulic power unit for the operation of the glider pits
    • Instruction manual
    • Evacuation transporter passport
    • Certificate

You can always get live advice from our experts. You can reach us on working days from 8.00 till 20.00 (UTC+3) by phone +7 812 200 42 24 You can also send an application to ceo@russtt.com.
