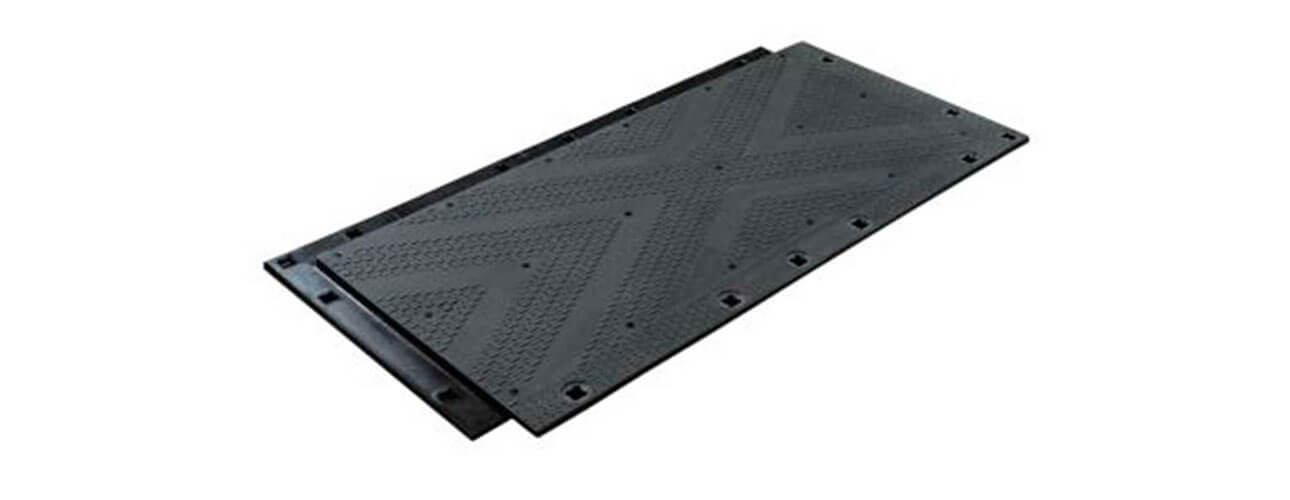

EDP.GALO.ARM

Specification

EDP.GALO.ARM

    • Payload: 120.000 kg
    • Section dimensions: 1200 x 1200 x 100 mm
    • Linear bending stiffness, kNm ≤ 200
    • The locking connection is a metal pin in a polymer casing with a locking pivot plate, which is fixed in the locking hole of adjacent plates by turning a key
    • Positive buoyancy (confirmed swamp use)
    • Corrugated surface for improved grip
    • Temperature range, ° С: from -40 to +60

EDP.GALO.ARM.PLUS

    • Payload: 120.000 kg
    • Section dimensions: 4000 x 2000 x 100 mm
    • Linear bending stiffness, kNm ≤ 200
    • The locking connection is a metal pin in a polymer casing with a locking pivot plate, which is fixed in the locking hole of adjacent plates by turning a key
    • Positive buoyancy (confirmed swamp use)
    • Corrugated surface for improved grip
    • Temperature regime, ° С: from -40 to +60

Complete unit of Evacuation Pavement EDP.GALO.ARM and EDP.GALO.ARM.PLUS

The number of sections to be used is determined when ordering products, depending on the required coverage or the types of aircraft.

Contents of delivery of Evacuation Pavement EDP.GALO.ARM and EDP.GALO.ARM.PLUS

    • Specification
    • Evacuation pavement section
    • Operation Manual
    • Passport
    • Certificate
